Tractor Salt Spreader | HillTip IceStriker™ Tractor Sand & salt spreader

TRACTOR SALT SPREADER DESIGN

Hilltip IceStriker™ 12V electric tractor salt spreaders is made out of a lightweight poly hopper body and in stainless steel. The components provides you protection against corrosion and rust. Our spreader and it’s control system helps you save money and reduce the impact on the environment. While achieving the same de-icing results as before!.

LIQUID DE-ICING FUNCTIONS

The tractor salt spreader can easily be transformed into a brine sprayer or into a combi- spreader. Integrated tanks in the double walled hopper holds up to 120 gallons of liquid. The spreader is optionally equipped with a 6’7″ spray bar and a hose reel with hand-held spray nozzle.

HTRACK™ TRACKING SYSTEM

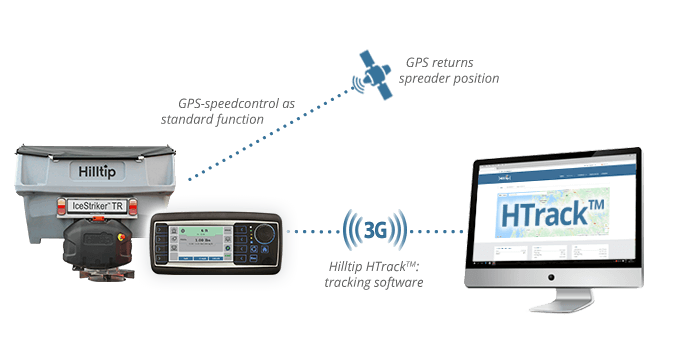

This sand & salt spreader is compatible with our standard HTrack™ tracking software. You can track and manage all of your spreading devices and snowplows online on your computer, tablet or smartphone. The program shows treatment routes and spreading details on the map in real-time or between specific time intervals. Spreading route details such as speed, GPS location, and material used can be summarized and generated as PDF reports.

You can reduce the salt usage with up to 30% with the optional liquid pre-wet system, and by 75% when using salt brine solution as de-icing method! This is direct savings for you and the environment.

Request a quote

Financing

Show brochure

FUNCTIONS AND ACCESSORIES

COLOR SCREEN CONTROLLER

Tailor your spreading session to your needs with the customizable controller. The automatic GPS speed control adjusts the amount of spreading material (lbs/1000 sq ft) according to your vehicle speed, while manual mode lets you insert a fixed auger speed. The controller additionally collects and saves essential data to a USB memory, allowing you to generate spreading reports. The controller also allow you to turn on functions, like the vibrator, beacon and work light, from inside the cabin.

ONLINE DATA-LOGGING

Online data-logging transfer via controller

INVERTED V

Inverted-V helps reduce heavy start-up loads on the auger. All in stainless steel.

VIBRATOR

Vibrator prevents bridging and de-icing material from clogging by shaking the inverted Vee.

AUGER

2.5’’ stainless steel auger (800 TR) and 4.5’’ stainless steel auger (1200-1900 TR)

TOP SCREEN

Top screen prevents rocks and big material chunks from getting into the hopper.

SUPPORT LEGS
800 TR

Supportlegs for easier storage.

SUPPORT LEG
1200-1900 TR

Supportlegs for easier storage.

ALSO INCLUDES

Built-in tie-down loops for strapping unit to truck
Hopper body includes molded alternate license plate area
The motor is mounted inside a sealed weather-resistant enclosure, and requires no pulleys, sprockets, belts or chains
Includes an accessory wire for optional work light, and beacon light that can be activated from the standard controller

SPRAY BAR 1200-1900 TR

6’7″ wide spraybar with 7′-16′ spraying width

SPRAY BAR 800 TR

6’7″ wide spraybar with 7′-16′ spraying width

MANUAL HOSE REEL

40′ hose reel for spraying hard-to-reach areas with saltsolutions in winter, and for green area maintenance in the summer

BLADDER TANK

Bladder tank for storing additional liquid inside hopper

BEACON WARNING LIGHT 800 TR

To increase visibility and keep you safe in the traffic

LED WORK LIGHT 800 TR

Adjustable work light at the rear of the spreader improves visibility

LED REAR LIGHTS, STROBE & WORK LIGHT KIT 1200-1900 TR

To increase visibility and keep you safe in the traffic

OTHER OPTIONS

Pre-wet Salt liquid kit complete with nozzles and pump for use with tanks built into the spreader
License plate kit
Different mounting solutions
End of material alarm sensor on spinner
Two-piece tarp mechanism prevents spillage off into truck bed when filling the spreader

TECHNICAL SPECIFICATIONS

Spreader specifications and dimensions.

SPREADER SPECIFICATIONS

Standard Metric

MODEL	800TR	1200 TR	1500 TR	1900 TR
Overall width	59"	80”	80”	80”
Height	59"	66”	71”	75”
Depth	58”	49”	49”	49”
Capacity (water level)	0.7 cu yd	1.0 cu yd	1.4 cu yd	1.7 cu yd
Capacity (rounded)	0.8 cu yd	1.2 cu yd	1.5 cu yd	1.9 cu yd
Weight (empty)	705 lb	1610 lbs	1665 lbs	1720 lbs
Hopper construction	Poly	Poly	Poly	Poly
Spreading width	3-30 ft (may vary depending on material)	2’-40’ (may vary depending on material)
Spinner size	15"	20”	20”	20”
Auger diameter	2.5"	4.5"	4.5"	4.5"
Vehicle	Tractors / loaders
Material	Salt, sand, granulat/mixed (max 5/16" ∅)

MODEL	600 TR	900 TR	1150 TR	1450 TR
Overall width	150 cm	205 cm	205 cm	205 cm
Height	150 cm	168 cm	180 cm	191 cm
Depth	148 cm	125 cm	125 cm	125 cm
Capacity (water level)	550 l	800 l	1100 l	1300 l
Capacity (rounded)	630 l	900 l	1150 l	1450 l
Weight (empty)	320 kg	730 kg	755 kg	780 kg
Hopper construction	Poly	Poly	Poly	Poly
Spreading width	1-8 m (may vary depending on material)	1-12 m (may vary depending on material)
Spinner size	390 mm	500 mm	500 mm	500 mm
Auger diameter	65 mm	115 mm	115 mm	115 mm
Vehicle	Tractors / loaders
Material	Salt, sand, granulat/mixed (max 8mm ∅)

LIQUID SYSTEM (optional)

Standard Metric

MODEL	800 TR	1200 TR	1500 TR	1900 TR
Pre-wet, Spray volume	0.8-3.2 gal/min	0.8-3.2 gal/min	0.8-3.2 gal/min	0.8-3.2 gal/min
Spraybar, Spray volume	20 gal/lane mile at 10-20 mph
Pre-wet, Spraying width	3-26 ft (together with spreading material)
Spraybar, Spraying width	7-16 ft	7-16 ft	7-16 ft	7-16 ft
Pre-wet, liquid tank capacity	87 gal	120 gal	120 gal	120 gal
Spraybar, liquid tank capacity	87-238 gal*	120-320 gal*	120-320 gal*	120-320 gal*
Spraying material	Anti- and de-icing liquids, water, liquid fertilizers **

MODEL	600 TR	900 TR	1150 TR	1450 TR
Pre-wet, Spray volume	3-12 l/min	3-12 l/min	3-12 l/min	3-12 l/min
Spraybar, Spray volume	5-25 l/min	5-25 l/min	5-25 l/min	5-25 l/min
Pre-wet, Spraying width	1-8 m (together with spreading material)
Spraybar, Spraying width	2-5 m	2-5 m	2-5 m	2-5 m
Pre-wet, liquid tank capacity	330 l	450 l	450 l	450 l
Spraybar, liquid tank capacity	330 l/900 l *	450 l/1200 l *	450 l/1200 l *	450 l/1200 l *
Spraying material	Anti- and de-icing liquids, water, liquid fertilizers **

* With optional patented bladder tank inside for spray bar system
** Do not use flammable or petroleum liquids for the liquid system

OPTIONAL LIQUID SYSTEM SAVINGS CALCULATOR

See how much you can save by reducing material costs with a liquid system.

Current de-icing method

Dry salt
Pre-wet

Compare with

Pre-wet
Brine only

Salt consumption

lbs/year *

Salt price

$/lb *

You can save in material costs annually

0 $

* Calculations based on the following application rates: dry salt 30g/m², pre-wet 17g/m², brine 35ml/m². With a pre-wet system, the application rate is significantly lower, as the pre-wetted salt bonds to the ground and starts breaking up the ice immediately.
