Hilltip SnowStriker™ Tractor V-snow plow

SNOW PLOW APPLICATIONS

The Hilltip Snowstriker™ 5500-8600 VTR snowplow is is designed with heavy-duty box construction for harsh winter conditions. It fits compact tractors and loaders with a total weight of 1–5 tons.

The SnowStriker™ 8600-10600 VMT is a medium-duty snowplow designed for 5-8 ton tractors and wheel loaders. Featuring a tractor and wheel loader A-frame, as well as a 3-point hitch connection type, this plow is built for versatility and efficiency.

SNOW PLOW DESIGN

The curved, powder-coated snow blade is made of high-strength steel, ensuring a durable yet lightweight snowplow. The adjustable two-or three-segment cutting edge with trip springs provides the best snowplow protection on the market. Cutting edges are available in polyurethane or steel.

In Finland we have snow for 6 months out of the year. We truly know snow removal technology!

Request a quote

Financing

Show brochure

FUNCTIONS AND ACCESSORIES

CUSTOM MOUNTINGS

3-point hitch
Multicar/multimobile plate
Custom mounting plate with hooks
etc.

ADJUSTABLE ATTACKING ANGLE

Adjust the attack angle according to plowing surface and weather conditions.

TILT ANGLE

Blade tilts and oscillates while plowing on uneven ground for a cleaner scrape (6°).

CUTTING EDGE

Two segmented cutting edge with trip springs protects the plow and vehicle from impact when hitting obstacles.

ALSO INCLUDES

Double acting cylinders
Curved blade for optimal snow-rolling effect

COLOR OPTION: ORANGE

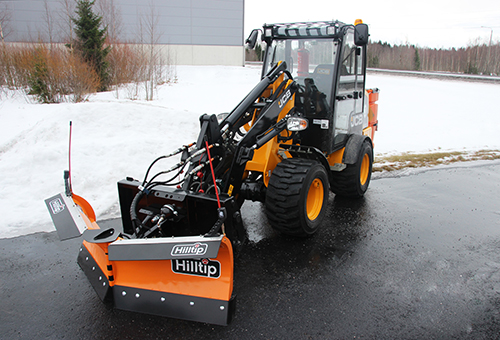

The snowplow is by default steel gray, but it can optionally be coated in orange to improve visibility.

SNOW DEFLECTOR

The optional poly deflector will help keep the snow off your windshield, to improve visibility.

Snow plow, straight blade, straight plow, snowplow for pickup, pickup plow

LED EDGE-MARKERS

Increases safety and visibility of blade edges.

OTHER OPTIONS

Custom mountings (3 point hitch, Multicar/multimobile plate etc.
Electro hydraulic 12/24 V
Pressure accumulator
Various plow cutting edges
Plow wheel kit 200 mm
Plow shoe kit

TECHNICAL SPECIFICATIONS

Plow specifications and dimensions

Standard Metric

MODEL	4900-VTR	5500-VTR	6000-VTR	7000-VTR	7400-VTR	7900-VTR	8600-VTR
Width	4 ft 9 in	5 ft 5 in	6 ft	7 ft	7 ft 4 in	7 ft 9 in	8 ft 6 in
Width (fully angled)	47"	57”	63”	73”	79”	85”	93"
Height	22-24"	22”-25”	22”-26”	22”-26.5”	22”-27"	22”-27.5”	26”-31.5”
Weight	264 lbs	302 lbs	309 lbs	326 lbs	342 lbs	370 lbs	415 lbs
Trip springs	4	6	6	6	6	8	8

MODEL	1450-VTR	1650-VTR	1850-VTR	2100-VTR	2250-VTR	2400-VTR	2600-VTR
Width	145 cm	165 cm	185 cm	210 cm	225 cm	240 cm	260 cm
Width (fully angled)	120 cm	145 cm	160 cm	185 cm	200 cm	215 cm	235 cm
Height	55-61,5 cm	55-63 cm	55-65,5 cm	55-67 cm	55-68 cm	55-70 cm	65-80 cm
Weight	120 kg	137 kg	140 kg	148 kg	155 kg	168 kg	188 kg
Trip springs	4	6	6	6	6	8	8

Standard Metric

MODEL	8600-VMT	9600-VMT	10600-VMT
Width	8 ft 6 in	9 ft 6 in	10 ft 6 in
Width (fully angled)	89”	98”	108"
Height	32”-39”	32”-39”	32”-39”
Weight	1235 lbs	1279 lbs	1323 lbs
Trip springs	6	6	6

MODEL	2600-VMT	2900-VMT	3200-VMT
Width	260 cm	290 cm	320 cm
Width (fully angled)	230 cm	260 cm	285 cm
Height	80-100 cm	80-100 cm	80-100 cm
Weight	560 kg	580 kg	600 kg
Trip springs	6	6	6

Specifications and other details are subject to change without notice.
