HillTip IceStriker™ Salt Spreader for trucks

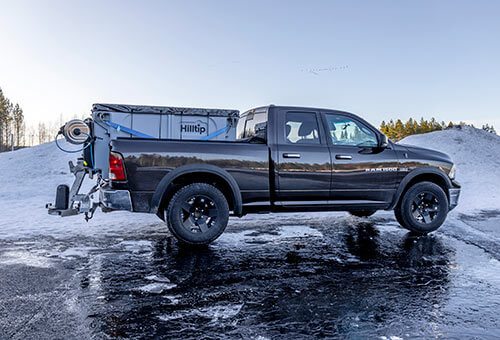

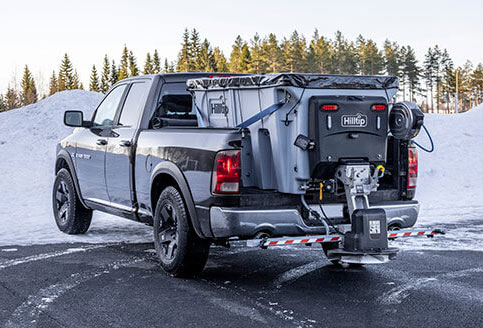

IceStriker™ 1200-1500 AM combi salt spreaders for 1/2 to 1 ton trucks

COMBI SALT SPREADER DESIGN

The Hilltip IceStriker™ 1200-1500 AM is a 12V and 24V electric sand and salt spreader for trucks. The spreader has a stainless steel auger and the modular hopper body is made of polyethylene. Components on our spreaders provides you long lasting protection against corrosion and rust. The IceStriker™ combi salt spreader with it’s unique control system, saves you money and reduces the impact on the environment, while achieving the same results as before.

LIQUID DE-ICING SPREADER

The poly hopper salt spreader for trucks can easily be transformed into a brine sprayer or into a pre-wet combi salt spreader that moistens the spreading material. The integrated tanks in the double walled hopper body holds up to 140 gallons of liquid. The spreader can also optionally be equipped with a 6’7″ dual spray bar or a hose reel with hand-held spray nozzle. This multi functional sand and salt spreader is designed for 1/2 ton – 1 ton trucks.

Salt Spreader for trucks, Saleuse pour camion

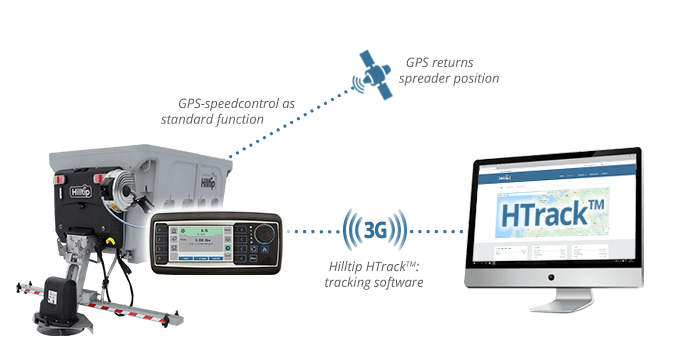

HTRACK™ TRACKING SYSTEM

This sand & salt spreader is compatible with our HTrack™ tracking software. You can track and manage all of your spreading devices online on your computer, tablet or smartphone. The program shows treatment route and spreading details on the map in real-time or between specific time intervals. Spreading route details such as speed, GPS location and material used can be summarized and generated as PDF reports.

Read more

You can reduce salt usage up to 30% with the optional liquid pre-wet system and by 75% when using salt brine solution as a de-icing method! These are direct savings for you and the environment.

FUNCTIONS AND ACCESSORIES


COLOR SCREEN CONTROLLER

The controller lets you customize your spreading session according to your current situation. Automatic GPS-speed control adjusts the amount of spreading material (lbs/1000 sq ft) according to your vehicle speed, while manual mode lets you insert a fixed auger speed. The controller additionally collects and saves essential data to an USB memory, allowing you to generate spreading reports. The controller also makes it easy to turn on functions like vibrator, beacon and work light, from inside the cabin.

Salt Spreader for trucks, Saleuse pour camion

FLIP UP CHUTE

Stainless steel flip-up chute, designed for spreading salt with high humidity

FEED MECHANISM – AUGER

Feed mechanism: Auger. Image shows the 4.5″ stainless steel auger.

IceStriker spreader vibrator

VIBRATOR

Vibrator prevents bridging and de-icing material from clogging by shaking the inverted Vee.

INVERTED V

Inverted-V helps reduce heavy start-up loads on the auger. All in stainless steel.

ALSO INCLUDES

  • 12 or 24 volt dual motors, mounted inside a sealed weather-resistant enclosure.
  • Built-in tie-down loops for strapping unit to truck
  • Top screen prevents rocks and big material chunks from getting into the hopper
  • Additional tank for rinsing / cleaning the spray system with anti-freeze liquid after each use
  • Built-in tie-down loops for strapping unit to truck
  • Includes an accessory wire for optional work light and beacon light that can be activated from the standard controller
  • Tarp kit

ACCESSORIES

  • LED Stop/ Tail / Brake lights
  • Beacon-Strobe lights
  • Adjustable work light at the rear of the spreader for improved visibility
  • Leg stand for practical storing and easier removal and installation
  • Adjustable spreading symmetry from inside the cab.
  • End of material alarm sensor on spinner
  • Extended chute for truck beds over 48” height.
  • Extended auger for optimization of vehicle axle loading.

LIQUID FUNCTIONS

  • Pre-wet salt liquid kit, nozzles, pump with built-in tanks in spreader construction
  • 6’7″ wide spray bar with 7′-16′ spraying width
  • 40′ hose reel for spraying hard-to-reach areas
  • Bladder tank stores additional liquid inside hopper

TECHNICAL SPECIFICATIONS

Spreader specifications and dimensions

SPREADER SPECIFICATIONS

MODEL1200 AM1500 AM
Total length (including spinner)8.6 ft9.8 ft
Hopper length6.2 ft7.5 ft
Minimum truck bed length6 ft7 ft
Width, min. truck bed35"35"
Width, maximum (with tarp mounted)45"45"
Total height of the hopper from the loadingnsurface of the carrying vehicle39"39"
Capacity, struck1.0 cu yd1.4 cu yd
Capacity, rounded1.2 cu yd1.6 cu yd
Weight (empty)495 lb594 lb
Hopper construction, dual wallPolyPoly
Spreading width, min-max2-40 ft (may vary depending on material)
Spinner size15"15"
Auger diameter (stainless steel)4.5"4.5"
MaterialSalt, sand, granulat/mixed (max 5/16" ∅)
Vehicle1/2 and 3/4 ton trucks3/4 and 1 ton trucks
MODEL900 AM1250 AM
Total length (including spinner)260 cm300 cm
Hopper lenght190 cm230 cm
Minimum truck bed length170 cm210 cm
Width, min. truck bed90 cm90 cm
Width, maximum (with tarp mounted)114 cm114 cm
Total height of the hopper from the loadingnsurface of the carrying vehicle100 cm100 cm
Capacity, struck800 l1180 l
Capacity, rounded900 lt1250 l
Weight (empty)225 kg270 kg
Hopper construction, dual wallPolyPoly
Spreading width, min-max1-8 m (may vary depending on material)
Spinner size390 mm390 mm
Auger diameter (stainless steel)115 mm115 mm
MaterialSalt, sand, granulat/mixed (max 8mm ∅)
Vehicle1/2 and 3/4 ton trucks3/4 and 1 ton trucks

LIQUID SYSTEM (optional)

MODEL1200 AM1500 AM
Pre-wet, Spray volume0.8-3.2 gal/min0.8-3.2 gal/min
Spraybar, Spray volume20 gal/lane mile at 10-20 mph20 gal/lane mile at 10-20 mph
Pre-wet, Spraying width3-26 ft (together with spreading material)
Spraybar, Spraying width7-16 ft7-16 ft
Pre-wet, liquid tank capacity120 gal140 gal
Spraybar, liquid tank capacity120-320 gal *140-400 gal *
Spraying materialAnti- and de-icing liquids, water, liquid fertilizers **
MODEL900 AM1250 AM
Pre-wet, Spray volume3-12 l/min3-12 l/min
Spraybar, Spray volume5-25 l/min5-25 l/min
Pre-wet, Spraying width1-8 m (together with spreading material)
Spraybar, Spraying width2-5 m2-5 m
Pre-wet, liquid tank capacity450 l530 l
Spraybar, liquid tank capacity450 - 1200 l *530 - 1500 l *
Spraying materialAnti- and de-icing liquids, water, liquid fertilizers **

* With optional patented bladder tank inside for spray bar system
** Do not use flammable or petroleum liquids for the liquid system

OPTIONAL LIQUID SYSTEM SAVINGS CALCULATOR

See how much you can save by reducing material costs with a liquid system

Current de-icing method


Compare with


Salt consumption

lbs / year *

Salt price

$ / lb *

You can save in material costs annually

* Calculations based on the following application rates: Dry salt 30g/m2, Pre-Wet 17g/m2, Brine 35ml/m2. With a Pre-Wet system the application rate is significantly lower, as the pre-wetted salt bonds to the ground and immediately start breaking up the ice.
