HillTip SprayStriker™ Liquid De-icing Sprayer

SprayStriker™ 135-400 gal De-Icing, Anti-Icing & Brine Sprayer for trucks and tractors

BRINE SPRAYER

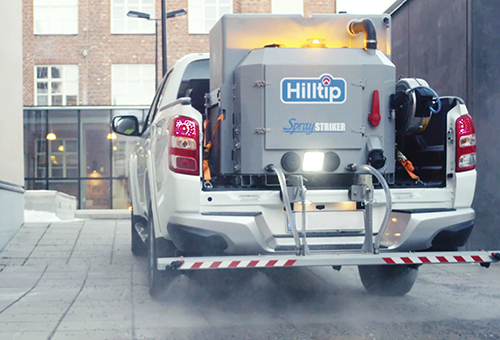

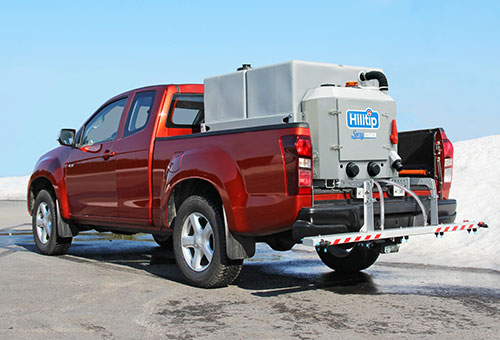

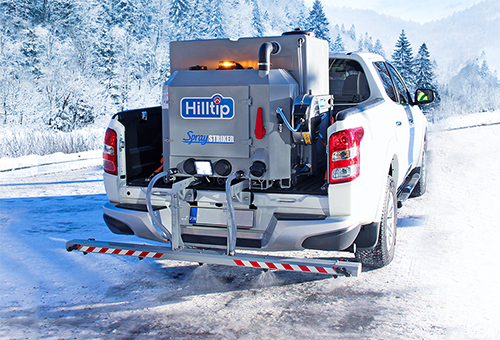

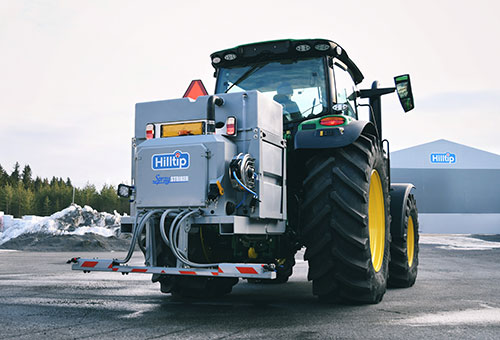

The Hilltip SprayStriker™ brine sprayer can be used in different ways when fighting icy roads and large parking areas. It is available in different sizes to match a versatile field of use, and to fit a wide range of vehicles. The brine sprayer for trucks is equipped with a dual 6’7″ wide spray bar or a hose reel with hand-held spray nozzle. The sprayer is also ideal to be used in the summer for agricultural purpose.

LIQUID SPRAYER DESIGN

The liquid de-icing sprayer is designed for maximum liquid tank capacity and for use on variety of vehicles, trucks and machines worldwide. The durable and light poly tanks are supported by a powder coated stainless-steel frame construction. The dual high performing liquid pumps and the CPU-unit is protected inside an easy-to-reach stainless-steel housing. The fully 12V electric-powered brine sprayers help contractors reduce salt usage while increasing their level of service. It’s simply the most efficient electric brine sprayer for trucks available on the market today.

De-icing sprayers, Halkbekämpning, Liuoslevitin, Solesprühen, Saumureuse,Urządzenie do odladzania solanką

HTRACK™ TRACKING SYSTEM

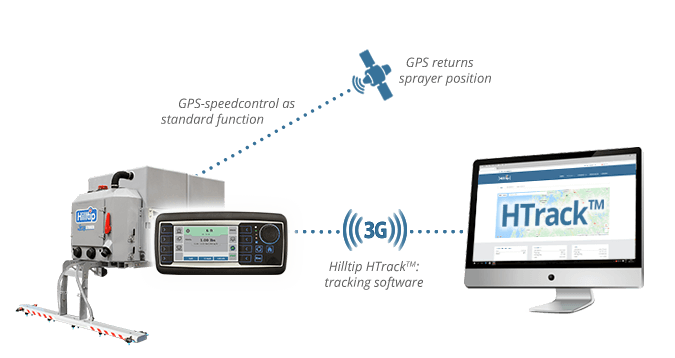

This truck brine sprayer is compatible with our standard HTrack™ tracking software. You can track and manage all of your spreading devices and snowplows online on your computer, tablet or smartphone. The program shows treatment routes and spreading details on the map in real-time or between specific time intervals. Spreading route details such as speed, GPS location, and material used can be summarized and generated as PDF reports.

Read more

When using salt brine solution as de-icing method, you save up to 75% on your salt used on each route, and reduce the impact on the environment!

FUNCTIONS AND ACCESSORIES


COLOR SCREEN CONTROLLER

Tailor your spreading session to your needs with the customizable controller. The automatic GPS speed control adjusts the amount of spreading material (gal/1000 sq ft) according to your vehicle speed, while manual mode lets you insert a fixed auger speed. The controller additionally collects and saves essential data to an USB memory, allowing you to generate spreading reports. The controller also makes it easy to turn on functions, like vibrator, beacon and work light, from inside the cabin.

SprayStriker brine sprayer spraybar

SPRAYBAR

6’7″ spraybar with totally 14 nozzles.

SprayStriker brine sprayer spray nozzles

DOUBLE SPRAY NOZZLES

Including nozzles on the end of the boom for extended spray width.

SprayStriker flip-up spraybar

FLIP UP SPRAYBAR

The spraybar can be flipped up on need.

Brine sprayer, Liquid de-icing equipment, De-icing sprayer, Liquid de-icing sprayers

SPEEDCONTROL

GPS-speedcontrol adjusts the liquid flow (gal/1000 sq ft) according to your vehicle speed.

ALSO INCLUDED

  • 12 V Twin pumps
  • 20 gal/lane mile at max speed 20 mph
  • 2″ camlock inlet for filling sprayer
  • Built-in tie-down loops for strapping unit to truck
  • Includes an accessory wire for optional beacon light that can be activated from the standard controller
SprayStriker sprayer hose reel

MANUAL DE-ICING HOSE REEL

Manual spray nozzle with 40′ hose reel for hard-to-reach areas

SprayStriker sprühbreite

SOLENIODS ON END NOZZLES

Electric solenoids on side nozzles (controlled from cabin), working width 7′-16′

SprayStriker sprayer warning light

BEACON WARNING LIGHT

To increase visibility and keep you safe in the traffic

SprayStriker sprayer legstands

LEGSTANDS

Hot galvanized adjustable leg stands for practical storing and easier removal and installation

3-POINT HITCH

3-point hitch mount frame (SprayStriker™ 500 and 800)

Spreader Anti-Icing

ANTI-ICING

If you apply a liquid solution before snow or rain, the liquid stays in the pores and cracks of the road and then prevents the bonding between the road surface and the ice. This will make the snow/ice come off easier when plowing.

Spreader De-Icing

DE-ICING

When a liquid solution is applied to an already icy/snowy road, it starts breaking up the ice from the top down.

TECHNICAL SPECIFICATIONS

Sprayer specifications and dimensions.

MODEL135200265400
Height41"49"41"41"
Width42"50”42"42"
Length39"50”63"89"
Tank volume135 gal200 gal265 gal400 gal
Spray width (max)16 ft16 ft16 ft16 ft
Spray volume20 gal/lane mile at 20 mph
Weight (empty)400 lb440 lb505 lb620 lb
MODEL50080010001500
Height105 cm125 cm105 cm105 cm
Width106 cm127 cm106 cm106 cm
Length100 cm127 cm160 cm225 cm
Tank volume500 l800 l1000 l1500 l
Spray width (max)5 m5 m5 m5 m
Spray volume5-36 l/min5-36 l/min5-36 l/min5-36 l/min
Weight (empty)180 kg200 kg230 kg280 kg

OPTIONAL LIQUID SYSTEM SAVINGS CALCULATOR

See how much you can save by reducing material costs with a liquid system.

Current de-icing method


Compare with


Salt consumption

lbs/year *

Salt price

$/lb *

You can save in material costs annually

* Calculations based on the following application rates: dry salt 30g/m², pre-wet 17g/m², brine 35ml/m². With a pre-wet system, the application rate is significantly lower, as the pre-wetted salt bonds to the ground and starts breaking up the ice immediately.
