Hilltip IceStriker™ Stainless steel Salt Spreaders for trucks

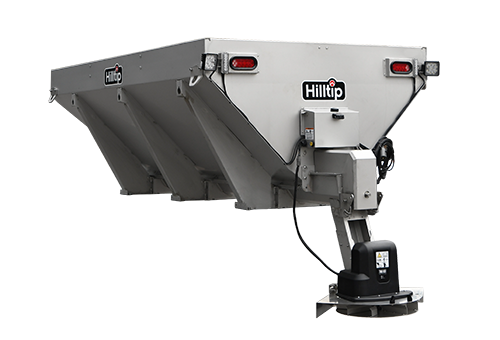

IceStriker™ 1000-3300 SSA/SSC series of 12/24V stainless steel spreaders for 3/4 ton trucks

SPREADER APPLICATIONS

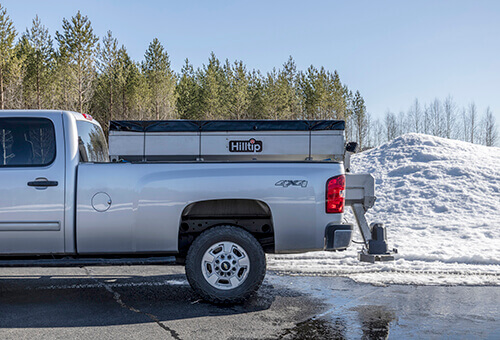

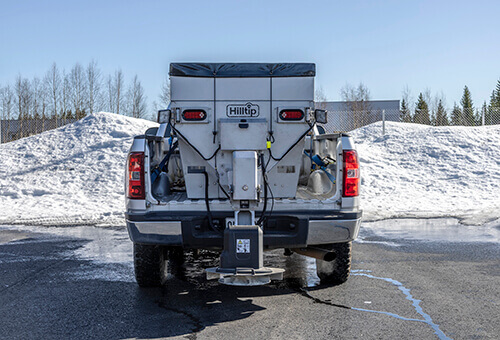

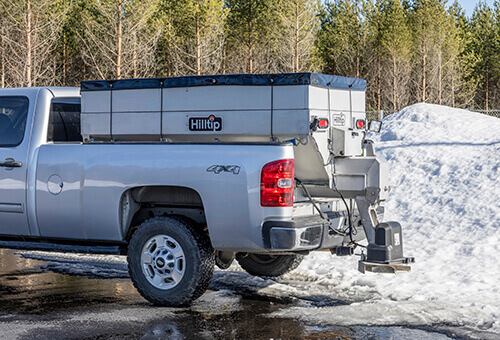

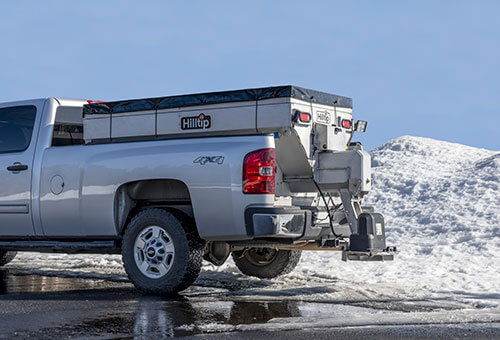

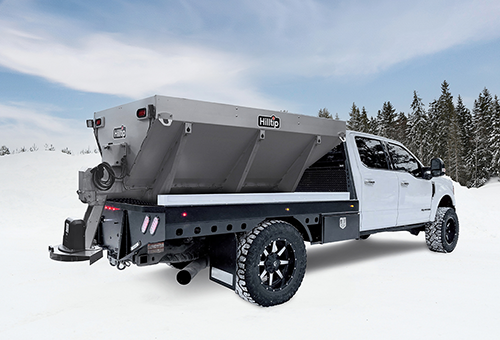

The IceStriker™ 1000-3300 SSA/SSC series of 12/24V stainless steel salt spreaders are available in 1.0 to 3.3 cu yd capacities. The SSA model has a 6” stainless steel auger and the SSC model is equipped with a 12” pintle chain system. All SSA/SSC spreaders come standard with Hilltip’s StrikeSmart™ controllers with ground speed control and our patented HTrack™ 2-way GPRS tracking/control system. A variety of lighting options are available, as well as, in-cabin asymmetry adjustment of the chute.

STAINLESS STEEL SPREADERS

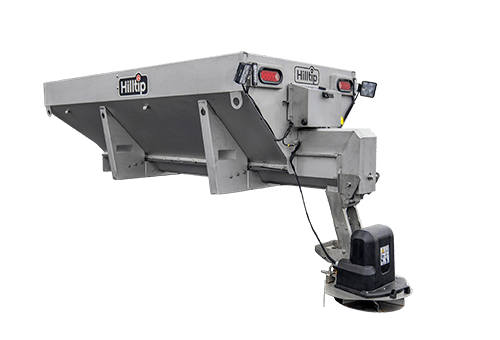

The durable 12 gauge hopper is made in high quality AISI304 stainless steel. The hopper body is also entirely acid treated by submersion in an acid bath for clean welds and surfaces with guaranteed long-lasting corrosion -free use. The hopper surface is easy to clean and maintain, and provides a smooth material flow. The spreader is designed for spreading bulk sand and gravel, bulk/bag salt, sand-salt mixes and fertilisers.

Stainless steel Salt spreader, Saleuse inoxydable

HTRACK™ TRACKING SYSTEM

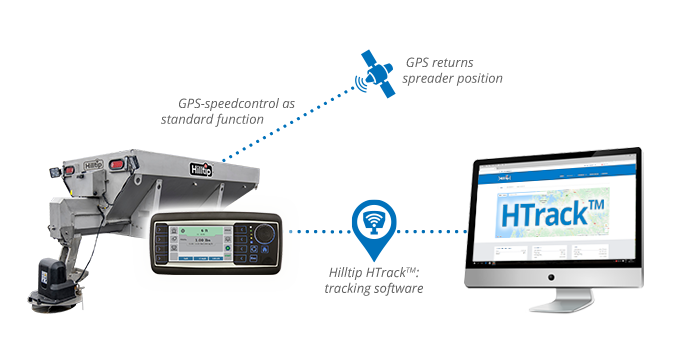

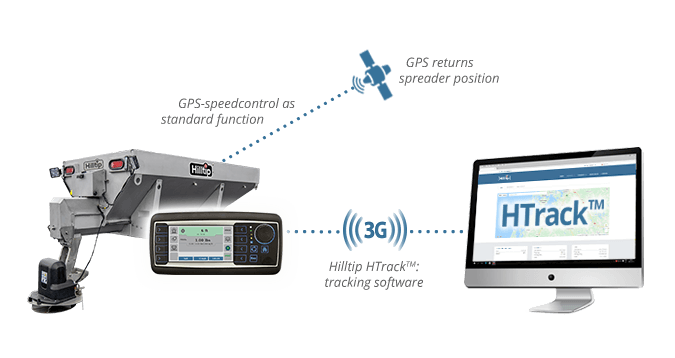

These stainless steel salt spreaders are compatible with our HTrack™ tracking software. You can track and manage all of your spreading devices online on your computer, tablet or smartphone. The program shows treatment routes and spreading details on the map in real-time or between specific time intervals. Spreading route details such as speed, GPS location, and material used can be summarized and generated as PDF reports.

Read more

FUNCTIONS AND ACCESSORIES


UTV Sand & Salt spreader, UTV salt spreader, Saleuse inoxydable

COLOR SCREEN CONTROLLER

Tailor your spreading session to your needs with the customizable controller. The automatic GPS speed control adjusts the amount of spreading material (lbs/1000 sq ft ) according to your vehicle speed, while manual mode lets you insert a fixed auger speed. The controller additionally collects and saves essential data to a USB memory, allowing you to generate spreading reports. The controller also makes it easy to turn on functions, like the vibrator, beacon and work light, from inside the cabin.

Stainless steel Salt spreader, Saleuse inoxydable

FLIP UP CHUTE

Stainless steel flip-up chute, designed for spreading salt with high humidity

Salt spreader in stainless steel, Saleuse Inoxydable

INVERTED V

Inverted-V helps reduce heavy start-up loads on the auger. All in stainless steel.

Stainless steel Salt spreader, Saleuse inoxydable

VIBRATOR

Vibrator prevents bridging and de-icing material from clogging by shaking the inverted Vee.

Stainless steel Salt spreader, Saleuse inoxydable

AUGER

The 6″ stainless steel 3-pitch auger gives you an even flow of material to the spinner.

Stainless steel Salt spreader, Saleuse inoxydable

ONLINE DATA-LOGGING

Online data-logging transfer via controller

Stainless steel Salt spreader, Saleuse inoxydable

TARP KIT

ALSO INCLUDES

  • Built-in tie-down loops for strapping unit to truck
  • The motor is mounted inside a sealed weather-resistant enclosure, and requires no pulleys, sprockets, belts or chains
  • Includes an accessory wire for optional work light, beacon light and rear camera that can be activated from the standard controller
  • Heavy duty strap kit (4 pc)
Salt spreader in stainless steel, Saleuse Inoxydable

LED STOP/ TAIL/ BRAKE LIGHTS

Salt spreader in stainless steel, Saleuse Inoxydable

LED WORK LIGHT

Adjustable work light at the rear of the spreader for improved visibility

Salt spreader in stainless steel, Saleuse Inoxydable

STROBE LIGHTS

To increase visibility and keep you safe in the traffic.

OTHER OPTIONS

  • Spreading symmetry adjustment, cabin control
  • End of material alarm sensor on spinner
  • Leg stands for practical storing and easier removal and installation
  • Chute extension for truck bed over 43”
  • 6“ or 12” stainless steel side extension

TECHNICAL SPECIFICATIONS

Spreader specifications and dimensions.

SPREADER SPECIFICATIONS

MODEL1000
SSA/SSC
1400
SSA/SSC
2000
SSA/SSC
2650
SSA/SSC
3300
SSA/SSC
Total length
(including spinner)
6.8 ft6.8 ft10 ft10 ft10 ft
Hopper length4.5 ft4.5 ft8 ft8 ft8 ft
Minimum truck bed length4.0 ft4.0 ft7 ft7 ft7 ft
Hopper width, maximum45"45"45"45"45"
Width, min. truck bed35"35"35"35"35"
Total height of the hopper from the loadingsurface of the carrying vehicle31"37"31"37"43"
Struck volume1.0 cu yd1.4 cu yd1.85 cu yd2.50 cu yd3.20 cu yd
Rounded volume1.05 cu yd1.45 cu yd2.05 cu yd2.70 cu yd3.35 cu yd
Weight (empty)474 lb518 lb606 lb672 lb728 lb
Hopper constructionStainless steel
Spreading width,
min -max
2-40 ft (may vary depending on material)
Spinner size15"15"15"15"15"
Auger diameter
(stainless steel)
6"6"6"6"6"
Conveyor chain12"12"12"12"12"
MaterialSalt, Sand, Granulate/Mixed (max 5/16’’ Ø)
Vehiclemin. ½ ton trucksmin. ½ ton trucksmin. 3/4 ton trucksmin. 3/4 ton trucksmin. 3/4 ton trucks
MODEL750
SSA/SSC
1000
SSA/SSC
1500
SSA/SSC
2000
SSA/SSC
2500
SSA/SSC
Total length
(including spinner)
206 cm206 cm307 cm307 cm307 cm
Hopper length138 cm138 cm240 cm240 cm240 cm
Minimum truck bed length120 cm120 cm210 cm210 cm210 cm
Hopper width, maximal 115 cm115 cm115 cm115 cm115 cm
Width, min. truck bed90 cm90 cm90 cm90 cm90 cm
Total height of the hopper from the loading surface of the carrying vehicle80 cm95 cm80 cm95 cm110 cm
Struck volume 750 l1000 l1400 l1900 l2430 l
Rounded volume800 l1100 l1560 l2060 l2560 l
Weight (empty)215 kg235 kg275 kg305 kg330 kg
Hopper constructionStainless steel
Spreading width,
min -max
1-12 m (may vary depending on material)
Spinner size390 mm390 mm390 mm390 mm390 mm
Auger diameter
(stainless steel)
155 mm155 mm155 mm155 mm155 mm
Conveyor Chain, width300 mm300 mm300 mm300 mm300 mm
MaterialSand, salt, gravel, mixes (max 5/16’’ Ø)
Vehiclemin. 1/2 ton trucksmin. 1/2 ton trucksmin. 3/4 ton trucksmin. 3/4 ton trucksmin. 3/4 ton trucks

OPTIONAL LIQUID SYSTEM SAVINGS CALCULATOR

See how much you can save by reducing material costs with a liquid system.

Current de-icing method


Compare with


Salt consumption

lbs/year *

Salt price

$/lb *

You can save in material costs annually

* Calculations based on the following application rates: dry salt 30g/m², pre-wet 17g/m², brine 35ml/m². With a pre-wet system, the application rate is significantly lower, as the pre-wetted salt bonds to the ground and starts breaking up the ice immediately.
