Hilltip SprayStriker™ M-Series

SprayStriker™ 30M & 70M Sanitation and Disinfection Sprayer

LIQUID SPRAYER

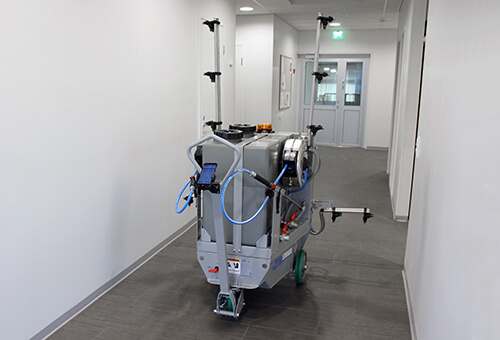

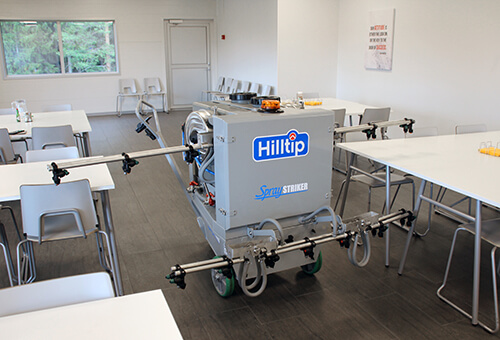

HILLTIP’s NEW disinfection sprayers with 12V twin pumps and tanks is for IN & OUTDOOR use. The SprayStriker™ M series is manually towed and designed to go through all standard door widths down to 32”.

The disinfection sprayers unit is calibrated with the StrikeSmart™ App to ensure the best accuracy of flow and pressure to produce droplets as low as 30-50 microns. The SprayStriker™ M Series feature two hose reels, adjustable upper and lower spray bars with (2) sets of nozzles and two tanks to allow for separate liquids. Independent control of the spray bars and hose reels is achieved through a Bluetooth enabled Smart phone giving the operator maximum fexibility for the application.

The sprayer is mounted on a 3-wheel trolley and operates of a 12V battery with a 110V charger. Options for this machine include de-icing nozzles and work lights. Its compact design and adjustable spray bars make the SprayStriker™ 30M perfectly suited for schools, hospitals, shopping malls,terminals and other public buildings.

We help you keep society
clean and safe”

STRIKESMART™ CONTROL APP

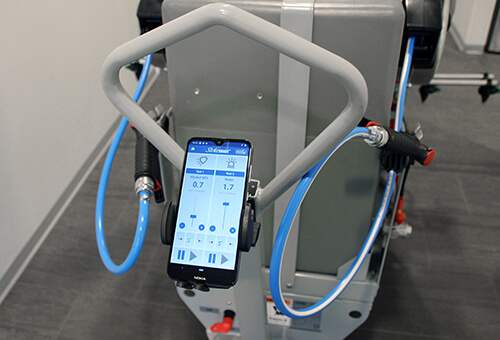

The StrikeSmart™ control app is a standard feature
for SprayStriker™ M-series disinfection sprayer.
The app in the smart phone lets you customize your
spraying session according to your current situation.
Additionally the app collects and saves essential
spraying data allowing you to generate spraying
reports. This wireless control system also makes it easy
to turn on functions, work light and beacon light, from
the smart phone.

TECHNICAL SPECIFICATIONS

Sprayer specifications and dimensions.

Model30M70M
Liquid tank capacity15 gal x 235 gal x 2
Width 30"30"
Height 45"48"
Length43"43"
Empty Weight 330 lbs350 lbs
Spraying width 2-8 ft2-8 ft
Pumps22
Max Pressure160 PSI160 PSI
Droplet size 30-50 microns30-50 microns
Battery12V / 115 Ah12V / 115 Ah
Battery charger 110V10 Amp10 Amp
