Our NEW SprayStriker™ HFE-series sprayers are the largest sprayers in the SprayStriker™ product family. These truck bed mounted de-icing sprayers have liquid tank capacities of 500-3250 gallons. Our fully 12V/24V electric-powered de-icing sprayers help contractors reduce salt usage while increasing their level of service.
SprayStriker™ HFE-series sprayers come standard with StrikeSmart™ controllers with GPS speed control and HTrack™ 2-way GPRS tracking and control system.

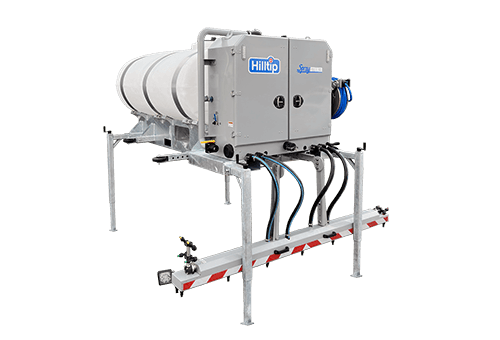

The sprayer is designed for maximum liquid tank capacity and for use on different lengths of truck beds and municipal trucks. The durable and light poly tanks are supported by a powder coated stainless-steel frame construction. The dual
Hi-Flow pumps, motors, valves and CPU-units are protected inside an easy-to-reach stainless steel cabinet.

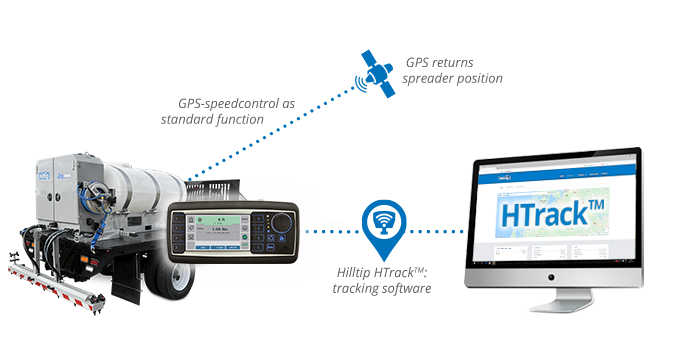

This truck brine sprayer is compatible with our standard HTrack™ tracking software. You can track and manage all of your spreading devices and snowplows online on your computer, tablet or smartphone. The program shows treatment routes and spreading details on the map in real-time or between specific time intervals. Spreading route details such as speed, GPS location, and material used can be summarized and generated as PDF reports.

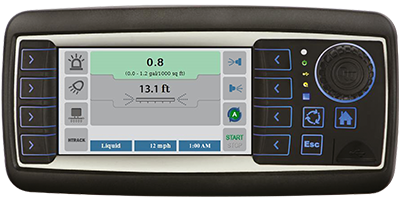

Tailor your spreading session to your needs with the customizable controller. The automatic GPS speed control adjusts the amount of spreading material (gal/1000 sq ft) according to your vehicle speed, while manual mode lets you insert a fixed auger speed. The controller additionally collects and saves essential data to a USB memory, allowing you to generate spreading reports. The controller also makes it easy to turn on functions, like the vibrator, beacon and work light, from inside the cabin.
2-lane, 90” wide spray bar with double spray and side nozzles
IP 67 rated Beacon warning light
12V dual Hi-Flow pumps with spray bar output of 20 gal/min
StrikeSmart™ controllers with GPS speed control and HTrack™ 2-way GPRS tracking and control system
65’ stainless steel hose reel for de-icing hard to reach areas
24V motors and battery power kit (2 x 115Ah)
Storage leg stand
If you apply a liquid solution before snow or rain, the liquid stays in the pores and cracks of the road and then prevents the bonding between the road surface and the ice. This will make the snow/ice come off easier when plowing.
When a liquid solution is applied to an already icy/snowy road, it starts breaking up the ice from the top down.
Sprayer specifications and dimensions.
|Tank volume||500 gal||750/800 gal||1000 gal||1600 gal||2650 gal||3250 gal|
|Spray width (max)||30 ft||30 ft||30 ft||30 ft||30 ft||30 ft|
|Spray volume, 12V/24V||20/40 gal/min||20/40 gal/min||20/40 gal/min||20/40 gal/min||20/40 gal/min||20/40 gal/min|
|1 lane, Max speed @20 gal/lane mile||50 mph||50 mph||50 mph||50 mph||50 mph||50 mph|
|3 lane, Max speed @20 gal/lane mile||20 mph||20 mph||20 mph||20 mph||20 mph||20 mph|
|Weight (lbs)||800 lb||980/1150 lb||1150 lb||1580 lb||2100 lb||2500 lb|
|Height||142 cm||152 cm||170 cm||170 cm||240 cm||240 cm|
|Width||145 cm||175 cm||200 cm||200 cm||224 cm||224 cm|
|Length||254 cm||270 cm||274 cm||396 cm||356 cm||432 cm|
|Tank volume||1890 l||2840/3030 l||3785 l||6055 l||10030 l||12300 l|
|Spray width (max)||9 m||9 m||9 m||9 m||9 m||9 m|
|Spray volume,12V/24V||55/110 l/min||55/110 l/min||55/110 l/min||55/110 l/min||55/110 l/min||55/110 l/min|
|1 lane, Max speed @25 ml/m²||85 km/h||85 km/h||85 km/h||85 km/h||85 km/h||85 km/h|
|3 lane, Max speed @25 ml/m²||30 km/h||30 km/h||30 km/h||30 km/h||30 km/h||30 km/h|
|Weight (kg)||365 kg||445/525 kg||525 kg||535 kg||955 kg||1135 kg|
